RadSyntaxEditor: The line numbers may be clipped when using custom fonts

Use a custom font set like this:

this.radSyntaxEditor1.SyntaxEditorElement.EditorFontFamily = new Telerik.WinControls.SyntaxEditor.UI.FontFamily("Cascadia Code");
this.radSyntaxEditor1.SyntaxEditorElement.EditorFontSize = 13;

Then load a large document, at least 10K lines so that the clipping is visible.

1 comment
ADMIN
Hristo
Posted on: 20 May 2022 12:16

Hello,

The issue can be worked around by manually syncing the font of the measurement text block with that of the editor:

this.radSyntaxEditor1.SyntaxEditorElement.EditorFontFamily = new Telerik.WinControls.SyntaxEditor.UI.FontFamily("Cascadia Code");
this.radSyntaxEditor1.SyntaxEditorElement.EditorFontSize = 13;

var lineNumberMargin = this.radSyntaxEditor1.SyntaxEditorElement.Margins.ScrollableLeft[0];
var textBlock = typeof(LineNumberMargin).
                    GetField("measureBlock", BindingFlags.Instance | BindingFlags.NonPublic).
                    GetValue(lineNumberMargin) as TextBlock;

if (textBlock != null)
{
    textBlock.FontFamily = this.radSyntaxEditor1.SyntaxEditorElement.EditorFontFamily;
    textBlock.FontSize = this.radSyntaxEditor1.SyntaxEditorElement.EditorFontSize;
}

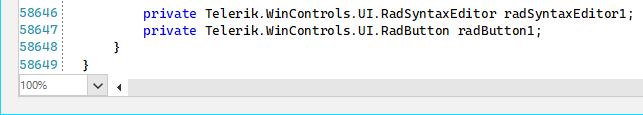

Here is the result:

Regards,
Hristo
