Walter
Created on: 14 Nov 2024 14:36
Category: VirtualKeyboard
Type: Bug Report
1
VirtualKeyboard EmptySpace breaks layout

Hello,

I found a bug where the EmptySpace element breaks the layout. When I use a Key-Button instead, the layout shifts to the correct position. However, I don't actually want to have any button in this position at all.

EmptySpace Element:


<RadVirtualKeyboard xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <Grid>
        <KeysLayout KeySpacing="0.1">
            <Rows>
                <Row>
                    <Keys>
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="81" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="87" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="69" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="82" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="84" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="89" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="85" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="73" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="79" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="80" />
                        <Key DisplayText="&#xf55a;" KeyType="Special" Width="2" Height="1" VirtualKey="8" />
					</Keys>
                </Row>
                <Row>
                    <Keys>
	                    <EmptySpace Width="0.5" Height="1" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="65" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="83" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="68" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="70" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="71" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="72" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="74" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="75" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="76" />
						<EmptySpace Width="1" Height="1" />
						<Key DisplayText="&#xe331;" KeyType="Special" Width="1.5" Height="2" VirtualKey="13" />
                    </Keys>
                </Row>
                <Row>
                    <Keys>
						<Key DisplayText="&#xf357;" KeyType="Lock" Width="1.5" Height="1" VirtualKey="20" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="90" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="88" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="67" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="86" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="66" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="78" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="77" />
						<Key DisplayText="," KeyType="Normal" Width="1" Height="1" />
						<Key DisplayText="." KeyType="Normal" Width="1" Height="1" />
					</Keys>
                </Row>
                <Row>
                    <Keys>
	                    <Key DisplayText="&amp;123" KeyType="Special" Width="2" Height="1" VirtualKey="113" />
                        <Key DisplayText="" KeyType="Special" Width="10" Height="1" VirtualKey="32" />
					</Keys>
                </Row>
            </Rows>
        </KeysLayout>
   </Grid>
</RadVirtualKeyboard>

Key-Element (Layout desired with EmptySpace):


<RadVirtualKeyboard xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <Grid>
        <KeysLayout KeySpacing="0.1">
            <Rows>
                <Row>
                    <Keys>
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="81" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="87" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="69" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="82" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="84" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="89" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="85" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="73" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="79" />
                        <Key KeyType="Normal" Width="1" Height="1" VirtualKey="80" />
                        <Key DisplayText="&#xf55a;" KeyType="Special" Width="2" Height="1" VirtualKey="8" />
					</Keys>
                </Row>
                <Row>
                    <Keys>
	                    <EmptySpace Width="0.5" Height="1" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="65" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="83" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="68" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="70" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="71" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="72" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="74" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="75" />
	                    <Key KeyType="Normal" Width="1" Height="1" VirtualKey="76" />
	                    <Key DisplayText="'" KeyType="Normal" Width="1" Height="1" />
						<Key DisplayText="&#xe331;" KeyType="Special" Width="1.5" Height="2" VirtualKey="13" />
                    </Keys>
                </Row>
                <Row>
                    <Keys>
						<Key DisplayText="&#xf357;" KeyType="Lock" Width="1.5" Height="1" VirtualKey="20" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="90" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="88" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="67" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="86" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="66" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="78" />
						<Key KeyType="Normal" Width="1" Height="1" VirtualKey="77" />
						<Key DisplayText="," KeyType="Normal" Width="1" Height="1" />
						<Key DisplayText="." KeyType="Normal" Width="1" Height="1" />
					</Keys>
                </Row>
                <Row>
                    <Keys>
	                    <Key DisplayText="&amp;123" KeyType="Special" Width="2" Height="1" VirtualKey="113" />
                        <Key DisplayText="" KeyType="Special" Width="10" Height="1" VirtualKey="32" />
					</Keys>
                </Row>
            </Rows>
        </KeysLayout>
   </Grid>
</RadVirtualKeyboard>

3 comments
ADMIN
Stenly
Posted on: 28 Nov 2024 11:25

Hello Walter,

Thank you for the additional information.

I logged a new bug report in our internal backlog and linked it to this one, in order to accumulate votes, as well as receive an e-mail notification when its status gets changed.

Additionally, as a token of gratitude for bringing this to our attention, I updated your Telerik points.

With this being said, please let me know if any additional assistance is required.

Regards,
Stenly
Progress Telerik

Love the Telerik and Kendo UI products and believe more people should try them? Invite a fellow developer to become a Progress customer and each of you can get a $50 Amazon gift voucher.

Walter
Posted on: 21 Nov 2024 12:28

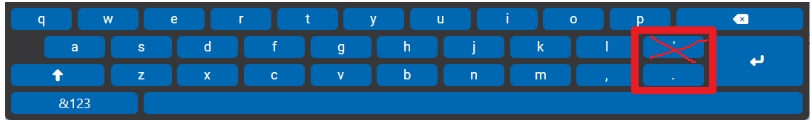

Hello, I marked the button with a X, there should be a empty place

But the result is:



ADMIN
Stenly
Posted on: 21 Nov 2024 11:05

Hello Walter,

Thank you for the shared information.

Before continuing, may I ask if it would be possible to share the expected end result on your end with the custom layout? How should the buttons in it be positioned and how much empty space does it require?

I will be awaiting your reply.

Regards,
Stenly
Progress Telerik
