When imported in the WordsProcessing model, the current HTML doesn't respect the defined column width and all columns have identical width:
<colgroup>
<col span="1" style="width: 33.3302%;">
<col span="1" style="width: 17.5658%;">
<col span="1" style="width: 49.104%;">
</colgroup>Observed result:
Expected result:
Workaround: use the width property as follows:
<colgroup>
<col span="1" width="33.3302%">
<col span="1" width="17.5658%">
<col span="1" width="49.104%">
</colgroup>
Hello, Claudio,
If you convert HTML content to RTF format, note that the column widths are explicitly specified in the RTF. They are defined in two ways, which is normal for a RTF table:
1. Absolute column boundaries (\cellxN): The effective column layout is determined by the \cellx values, which define the right edge of each column measured in twips (1 twip = 1/20 of a point). For example:
\cellx3000 \cellx6000 \cellx9000
2. Preferred cell widths (\clwWidth + \clftsWidth): Each cell also contains a preferred width hint, for example:
\clwWidth375 \clftsWidth3
Where:
\clftsWidth3 = preferred width in twips
\clwWidthN = width value

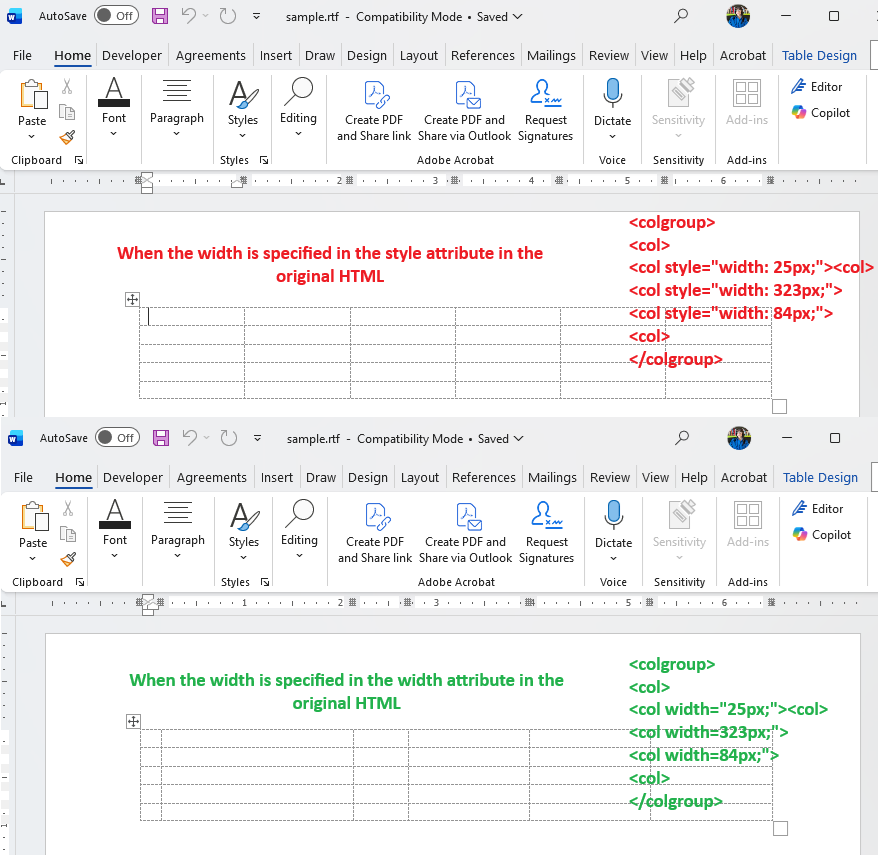

When opening the RTF document in MS Word it displays the columns with proper width comparted to the produced result with defining the width in the style attribute:
If you are still facing any further difficulties, I would highly encourage you continue the communication in the support ticket you have opened on the same topic (instead of this public feedback bug report). Thus, we could preserve the communication private and I would be able to provide further assistance. Thank you for your understanding.
Regards,
Dess | Tech Support Engineer, Principal
