WordsProcessing: Add support for the svg element in HtmlFormatProvider

The SVG element allows drawing paths, boxes, circles, text, and graphic images in HTML document.

Here is a sample:

    <div style="border: 1px solid #ccc; border-radius: 5px; padding: 10px; margin: 10px; background-color: #f9f9f9;">
      <table>
        <tr>
          <td>
            <svg viewBox="0 0 100 100" xmlns="http://www.w3.org/2000/svg" style="width:70px">
              <path d="M20 35 L50 20 L80 35 L80 75 L50 90 L20 75 Z" fill="#1581A0"></path>

              <path d="M50 20 L80 35 L80 75 L50 90 L50 20" fill="#1E3D6B" opacity="0.3"></path>

              <path d="M35 40 L65 40 L65 70 L35 70 Z" fill="white" opacity="0.9"></path>

              <path d="M35 50 L65 50" stroke="white" stroke-width="2" opacity="0.6"></path>
              <path d="M35 60 L65 60" stroke="white" stroke-width="2" opacity="0.6"></path>

              <path d="M45 40 L45 70" stroke="white" stroke-width="2" opacity="0.6"></path>
              <path d="M55 40 L55 70" stroke="white" stroke-width="2" opacity="0.6"></path>

              <path d="M20 35 L50 20 L80 35" fill="none" stroke="white" stroke-width="1.5" opacity="0.2"></path>
            </svg>
          </td>
          <td>
            <h1 style="padding-top: 9px;">Property Comparables Ltd</h1>
          </td>
        </tr>
      </table>
    </div>

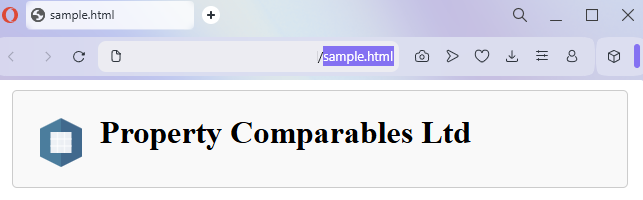

The expected result should look in a similar way in the browser:
