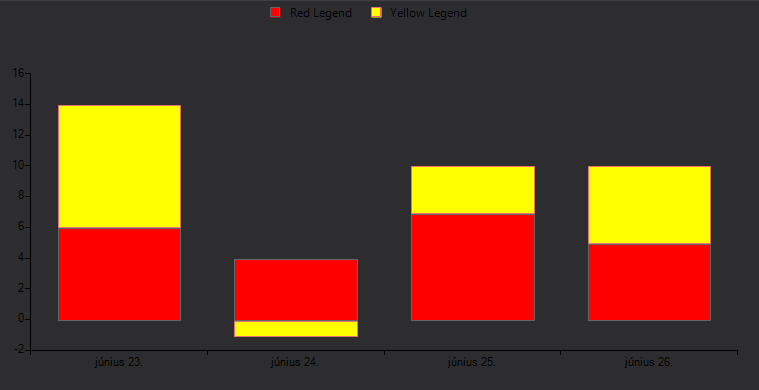

Legend Item Text is not visible in Windows11Dark. This is because the LegendItem  A possible workaround is to subscribe to the VisualItemCreating event. In the event handler, we can create a new LegendItemElement and set its ForeColor.

private void LegendElement_VisualItemCreating(object sender, LegendItemElementCreatingEventArgs e)
{
    e.ItemElement = new LegendItemElement(e.LegendItem) { ForeColor = Color.Black };
}

Before zoom:

After zoom:

Please refer to the attached sample project. Try to select a point.

Expected result: the clicked point should be colored in red.

Actual result: a random point is colored in red even though the label is colored correctly. The attached gif file illustrates the observed result.

Currently, VisualStudio2012DarkTheme has a white background in order to be able to read the labels. This change was done when addressing this item:

https://feedback.telerik.com/winforms/1535458-radchartview-the-axis-label-are-difficult-to-read-in-visualstudio2012darktheme

However, it is inconsistent a dark theme to have a white background color. The design should be improved to achieve consistent look and feel.

System.OverflowException: 'Value was either too large or too small for a Decimal.

To reproduce:

var lineSeries = new LineSeries();
lineSeries.DataPoints.Add(new CategoricalDataPoint(0, "A"));
lineSeries.DataPoints.Add(new CategoricalDataPoint(Convert.ToDouble(decimal.MaxValue), "B"));
lineSeries.DataPoints.Add(new CategoricalDataPoint(0, "C"));
lineSeries.DataPoints.Add(new CategoricalDataPoint(decimal.ToDouble(decimal.MaxValue), "D"));
lineSeries.DataPoints.Add(new CategoricalDataPoint(0, "E"));

this.radChartView1.Series.Add(lineSeries);

            radChartView1.AreaType = ChartAreaType.Cartesian;
            var scatterSeries = new ScatterSeries();
            scatterSeries.DataPoints.Add(new ScatterDataPoint(15, 19));
            scatterSeries.DataPoints.Add(new ScatterDataPoint(18, 10));
            scatterSeries.DataPoints.Add(new ScatterDataPoint(13, 15));
            scatterSeries.DataPoints.Add(new ScatterDataPoint(10, 8));
            scatterSeries.DataPoints.Add(new ScatterDataPoint(5, 12));
            radChartView1.Series.Add(scatterSeries);

            var verticalAxis = radChartView1.Axes.Get<LinearAxis>(1);
            verticalAxis.Minimum = 0.0d;
            verticalAxis.Maximum = 5.0d;
            verticalAxis.MajorStep = 0.5d;
            verticalAxis.LabelFormat = "{0:0.00} m";

            for (var i = verticalAxis.Minimum; i <= verticalAxis.Maximum; i += verticalAxis.MajorStep)
            {
                var annotation1 = new CartesianGridLineAnnotation();
                annotation1.Axis = this.radChartView1.Axes[1] as CartesianAxis;
                annotation1.BorderColor = Color.LightGray;
                annotation1.BorderDashStyle = DashStyle.Solid;
                annotation1.BorderWidth = 1;
                annotation1.Value = i;
                radChartView1.Annotations.Add(annotation1);
            }

Workaround:

        public RadForm1()
        {
            InitializeComponent();

            this.radChartView1.CreateRenderer += radChartView1_CreateRenderer;
            InitChart();
        }

        private void radChartView1_CreateRenderer(object sender, ChartViewCreateRendererEventArgs e)
        {
            e.Renderer = new CustomRenderer(e.Area as CartesianArea);
        }

        public class CustomRenderer : CartesianRenderer
        {
            public CustomRenderer(CartesianArea area) : base(area)
            {
            }

            protected override void InitializeAnnotations(AnnotationDrawMode drawMode)
            {
                for (int i = 0; i < this.Area.Annotations.Count; i++)
                {
                    if (this.Area.Annotations[i] is CartesianGridLineAnnotation && this.Area.Annotations[i].DrawMode == drawMode)
                    {
                        this.DrawParts.Add(new CustomCartesianGridLineAnnotationDrawPart(this.Area.Annotations[i] as CartesianGridLineAnnotation, this));
                    }
                }
            }
        }

        public class CustomCartesianGridLineAnnotationDrawPart : CartesianGridLineAnnotationDrawPart
        {
            public CustomCartesianGridLineAnnotationDrawPart(CartesianGridLineAnnotation element, CartesianRenderer renderer) : base(element, renderer)
            {
            }

            public override void Draw()
            {
                FieldInfo fi = typeof(CartesianGridLineAnnotation).GetField("model", BindingFlags.Instance | BindingFlags.NonPublic);
                ChartAnnotationModel model = fi.GetValue(this.Element) as ChartAnnotationModel;
                RectangleF rect = ChartRenderer.ToRectangleF(model.LayoutSlot);
                rect.Offset(this.ViewportOffsetX, this.ViewportOffsetY);
                rect.Offset(new PointF(0,1));
                Graphics graphics = this.Renderer.Surface as Graphics;
                RadGdiGraphics radGraphics = new RadGdiGraphics(graphics);

                Rectangle clipRect = ChartRenderer.ToRectangle(this.Element.View.GetArea<CartesianArea>().AreaModel.PlotArea.LayoutSlot);
                clipRect.Offset((int)this.ViewportOffsetX, (int)this.ViewportOffsetY);
                graphics.SetClip(clipRect);

                GraphicsPath path = new GraphicsPath();
                path.AddLine(rect.Location, new PointF(rect.Right, rect.Bottom));

                BorderPrimitiveImpl border = new BorderPrimitiveImpl(this.Element, null);
                border.PaintBorder(radGraphics, null, path, rect);

                rect.Size = graphics.MeasureString(this.Element.Label, this.Element.Font);
                rect.Offset(this.Element.PositonOffset.Width + 1, this.Element.PositonOffset.Height + 1);

                TextParams tp = new TextParams();
                tp.font = this.Element.Font;
                tp.foreColor = this.Element.ForeColor;
                tp.paintingRectangle = new RectangleF(rect.X, rect.Y, rect.Height, rect.Width);
                tp.text = this.Element.Label;

                FillPrimitiveImpl fill = new FillPrimitiveImpl(this.Element, null);
                fill.PaintFill(radGraphics, null, rect);

                radGraphics.DrawString(tp, new SizeF(rect.Height, rect.Width));
            }
        }

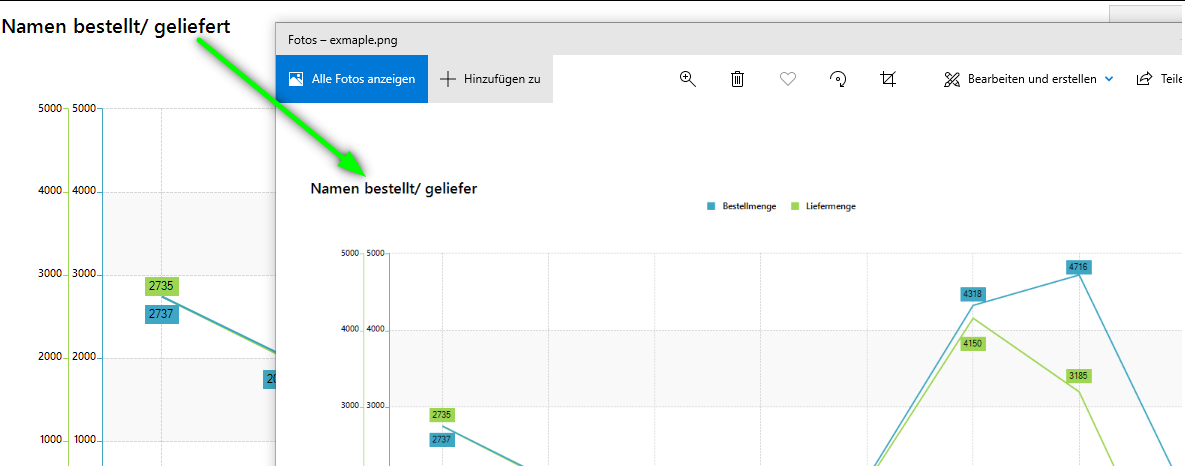

Currently, RadChartView offers exporting to a Bitmap in one of the following formats: https://docs.microsoft.com/en-us/dotnet/api/system.drawing.imaging.imageformat?view=netframework-4.8

It would be nice to have export functionality to  a vector image.

Hi team,

We need a ChartView with multiple series and multiple Y-axis. The axis color of each Y-axis should be automatically painted according to the palette setting (thank you for the brilliant work - it's very intuitive). However, if clear the series and re-assign a new set of series, the border color of the first axis changes to black, regardless which palette is active. If the palette is set to a new one, the border color can be re-painted correctly. See screenshot as attached.

How to reproduce: Please refer to the attached project for a demo of reproduction. Click the first button to populate new random data. The border color of the first axis should change to black after clicking the button twice and more times. Clicking the second button will force the palette to change and the border color will become normal.

Thank you, team.

Best,

Yusi

When you have BarSeries and LineSeries in RadChartView the problem is that the DataPoint.Presenter is always BarSerries, never LineSeries.

To workaround, create custom renderer:

this.radChartView1.CreateRenderer += this.RadChartView1_CreateRenderer;
private void RadChartView1_CreateRenderer(object sender, ChartViewCreateRendererEventArgs e)
{
    e.Renderer = new CustomCartesianRenderer(e.Area as CartesianArea);
}

public class CustomCartesianRenderer : CartesianRenderer
{
    public CustomCartesianRenderer(CartesianArea area)
        : base(area)
    { }
    public override DataPoint HitTest(int x, int y)
    {
        for (int i = this.DrawParts.Count - 1; i >= 0; i--)
        {
            DataPoint dataPoint = this.DrawParts[i].HitTest(new Point(x, y));
            if (dataPoint != null)
            {
                return dataPoint;
            }
        }

        return base.HitTest(x, y);
    }
}

Use attached to reproduce.

- Click at least 7 times.

Workaround: Crete new series instance each time.

Use attached to reproduce.

Workaround:

After 1 million the decimal places of the labels are not correct, In your image. the labels on the horizontal axis go 999,992.50 - 999,995.00 - 999,997.5 -  1,000,000.00 - *1,000,003.00(should be 1,000,002.50) - 1,000,005.00 - *1,000,008.00(should be 1,000,007.5)

To reproduce:
            WaterfallSeries series = new WaterfallSeries();
            series.ShowLabels = true;

            series.DataPoints.Add(new WaterfallDataPoint(50000, false, false, "Beginning\nBalance"));
            series.DataPoints.Add(new WaterfallDataPoint(17000, false, false, "Jan"));
            series.DataPoints.Add(new WaterfallDataPoint(14000, false, false, "Feb"));
            series.DataPoints.Add(new WaterfallDataPoint(-12000, false, false, "Mar"));
            series.DataPoints.Add(new WaterfallDataPoint(69000, true, false, "Q1"));
            series.DataPoints.Add(new WaterfallDataPoint(-22000, false, false, "Apr"));
            series.DataPoints.Add(new WaterfallDataPoint(-18000, false, false, "May"));
            series.DataPoints.Add(new WaterfallDataPoint(500, false, false, "Jun"));
            series.DataPoints.Add(new WaterfallDataPoint(-30000, true, false, "Q2"));
            series.DataPoints.Add(new WaterfallDataPoint(39000, false, true, "Ending\nBalance"));
            this.radChartView1.Series.Add(series);

            CartesianGridLineAnnotation annotation1 = new CartesianGridLineAnnotation();
            annotation1.Label = "Annotation";
            annotation1.ForeColor = Color.Lime;
            annotation1.BackColor = Color.Black;
            this.radChartView1.Annotations.Add(annotation1);

Workaround:

        public RadForm1()
        {
            InitializeComponent();
            this.radChartView1.CreateRenderer += radChartView1_CreateRenderer;

            WaterfallSeries series = new WaterfallSeries();
            series.ShowLabels = true;

            series.DataPoints.Add(new WaterfallDataPoint(50000, false, false, "Beginning\nBalance"));
            series.DataPoints.Add(new WaterfallDataPoint(17000, false, false, "Jan"));
            series.DataPoints.Add(new WaterfallDataPoint(14000, false, false, "Feb"));
            series.DataPoints.Add(new WaterfallDataPoint(-12000, false, false, "Mar"));
            series.DataPoints.Add(new WaterfallDataPoint(69000, true, false, "Q1"));
            series.DataPoints.Add(new WaterfallDataPoint(-22000, false, false, "Apr"));
            series.DataPoints.Add(new WaterfallDataPoint(-18000, false, false, "May"));
            series.DataPoints.Add(new WaterfallDataPoint(500, false, false, "Jun"));
            series.DataPoints.Add(new WaterfallDataPoint(-30000, true, false, "Q2"));
            series.DataPoints.Add(new WaterfallDataPoint(39000, false, true, "Ending\nBalance"));
            this.radChartView1.Series.Add(series);

            CartesianGridLineAnnotation annotation1 = new CartesianGridLineAnnotation();
            annotation1.Label = "Annotation";
            annotation1.ForeColor = Color.Lime;
            annotation1.BackColor = Color.Black;
            annotation1.PositonOffset = new SizeF(0, -20);
            annotation1.Axis = this.radChartView1.Axes[1] as CartesianAxis;
            annotation1.Value = 70000;
            annotation1.BorderColor = Color.Red;
            annotation1.BorderDashStyle = DashStyle.Solid;
            annotation1.BorderWidth = 1;
            this.radChartView1.Annotations.Add(annotation1);
        }

        private void radChartView1_CreateRenderer(object sender, ChartViewCreateRendererEventArgs e)
        {
            e.Renderer = new CustomCartesianRenderer(e.Area as CartesianArea);
        }

        public class CustomCartesianRenderer : CartesianRenderer
        {
            public CustomCartesianRenderer(CartesianArea area) : base(area)
            {
            }

            protected override void Initialize()
            {
                base.Initialize();
                for (int i = 0; i <= this.DrawParts.Count - 1; i++)
                {
                    CartesianGridLineAnnotationDrawPart annotationPart = this.DrawParts[i] as CartesianGridLineAnnotationDrawPart;
                    if (annotationPart != null)
                    {
                        this.DrawParts[i] = new CustomCartesianGridLineAnnotationDrawPart((CartesianGridLineAnnotation)annotationPart.Element, this);
                    }
                }
            }
        }

        public class CustomCartesianGridLineAnnotationDrawPart : CartesianGridLineAnnotationDrawPart
        {
            public CustomCartesianGridLineAnnotationDrawPart(CartesianGridLineAnnotation element, CartesianRenderer renderer) : base(element, renderer)
            {
            }

            public override void Draw()
            {
                FieldInfo fi = typeof(CartesianGridLineAnnotation).GetField("model", BindingFlags.NonPublic | BindingFlags.Instance);
                ChartAnnotationModel model = fi.GetValue(this.Element) as ChartAnnotationModel;
                RectangleF
                rect = ChartRenderer.ToRectangleF(model.LayoutSlot);
                rect.Offset(this.ViewportOffsetX, this.ViewportOffsetY);

                Graphics graphics = this.Renderer.Surface as Graphics;
                RadGdiGraphics radGraphics = new RadGdiGraphics(graphics);

                Rectangle clipRect = ChartRenderer.ToRectangle(this.Element.View.GetArea<CartesianArea>().AreaModel.PlotArea.LayoutSlot);
                clipRect.Offset((int)this.ViewportOffsetX, (int)this.ViewportOffsetY);
                graphics.SetClip(clipRect);

                GraphicsPath path = new GraphicsPath();
                path.AddLine(rect.Location, new PointF(rect.Right, rect.Bottom));

                BorderPrimitiveImpl border = new BorderPrimitiveImpl(this.Element, null);
                border.PaintBorder(radGraphics, null, path, rect);

                rect.Size = graphics.MeasureString(this.Element.Label, this.Element.Font);
                rect.Offset(this.Element.PositonOffset.Width + 1, this.Element.PositonOffset.Height + 1);

                TextParams tp = new TextParams();
                tp.font = this.Element.Font;
                tp.foreColor = this.Element.ForeColor;
                tp.paintingRectangle = rect;
                tp.text = this.Element.Label;

                FillPrimitiveImpl fill = new FillPrimitiveImpl(this.Element, null);
                fill.PaintFill(radGraphics, null, rect);

                TextPrimitiveHtmlImpl text = new TextPrimitiveHtmlImpl();
                text.PaintPrimitive(radGraphics, 0f, new SizeF(1f, 1f), tp);
            }
        }
