Similar to https://feedback.telerik.com/reporting/1356710-rendering-to-xlsx-should-not-add-bom-to-xml-files :

DOCX files exported with DocxFormatProvider contain a BOM in every exported XML file. Some programs fail to load those DOCX files.

Please remove the BOM, or add a toggle in DocxExportSettings.

If a TOC field uses TC fields only (with the \f switch) and there is a tab in the text of the TC field, after mail merge, the tab becomes really wide. If the file is opened in word and the field is updated, everything goes back to normal.

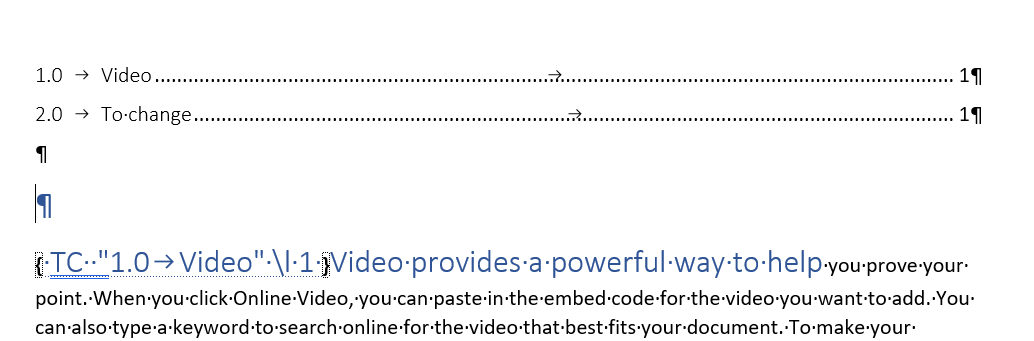

Expected:

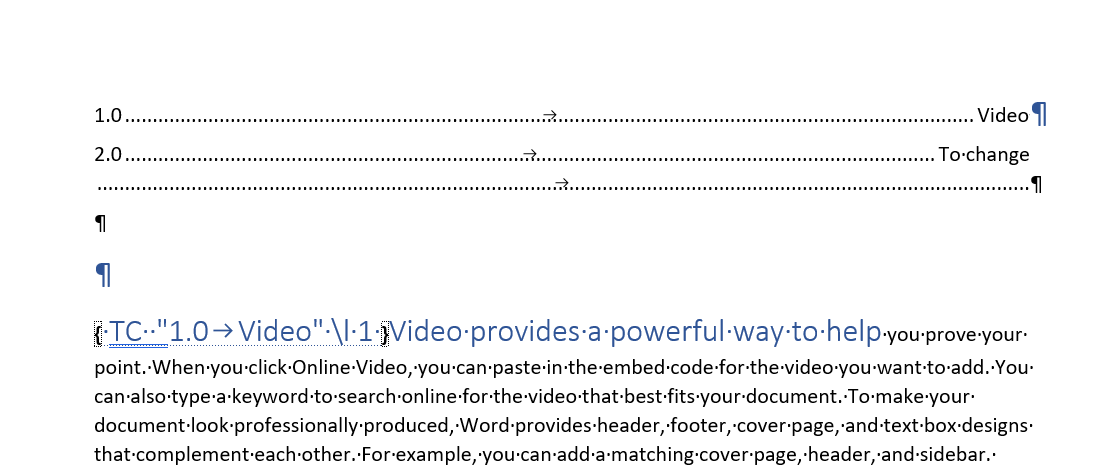

Actual:

A possible workaround is to set the fields to be updated on opening of the document:

DocxFormatProvider provider = new DocxFormatProvider();
provider.ExportSettings.AutoUpdateFields= true;

When a span has nested strikethrough and underline tags applied to it only the inner tag is respected.

This HTML:

results in:

UnderlineStrikethrough

And this HTML:

results in:

UnderlineStrikethrough

As a possible workaround, you can add some text placeholder to the span that needs both "underline" and "strikethrough" and after import set the properties, and remove the placeholder text.

Sample HTML:

after import, execute this:

When exporting RadFlowDocument that contains TOC field, resultant PDF document should contain link point to the page shown in TOC.


note this is different from already existing request as this request is to link to the page, which is possible in telerik PDF export as demonstrated here and not to the bookmark.

Importing html image with no source and then exporting it to pdf causes an exception, instead of omitting the faulty image.

Such images can be stripped using the following workaround:

List<ImageInline> images = this.document.EnumerateChildrenOfType<ImageInline>().ToList();

foreach (var image in images)
{
      if (image.Image.ImageSource == null)
      {
               image.Paragraph.Inlines.Remove(image);
      }
}

You can add captions to figures, equations, or other objects.

From the Office Open XML File Formats Specification: This element specifies the contents and positioning for captions which can be used to automatically label objects in a WordprocessingML document. A caption is a string that labels an object included in a WordprocessingML document, and typically consists of a string plus a field which numbers this item within a collection of similar objects.

Similar functionality can be achieved using the CustomCodeField:

RadFlowDocumentEditor editor = new RadFlowDocumentEditor(document);
using (Stream stream = File.OpenRead("Image1.jpg"))
{
	ImageInline image = editor.InsertImageInline(stream, "jpg");
	editor.InsertBookmark("Image", image, image);
}

editor.InsertBreak(BreakType.LineBreak);
editor.InsertText("Figure ");
editor.InsertField("SEQ Image", "Update Figure Number");
