Please refer to the attached sample video.
StackTrace:
Message: Object reference not set to an instance of an object. Telerik.WinControls.UI.RadGridViewDragDropService.GetDragImageHint(ContentAlignment textAlignment, Bitmap hintImage, RectangleF textRectangle, Int32 hintImageWidth) Telerik.WinControls.UI.ColumnChooserItem.GetDragHintCore() Telerik.WinControls.RadItem.Telerik.WinControls.ISupportDrag.GetDragHint() Telerik.WinControls.RadDragDropService.PrepareContext():80 Telerik.WinControls.RadDragDropService.HandleMouseMove(Point mousePos):40 Telerik.WinControls.UI.RadGridViewDragDropService.HandleMouseMove(Point mousePosition):13 Telerik.WinControls.RadDragDropService.Telerik.WinControls.IMessageListener.PreviewMessage(Message& msg):150 Telerik.WinControls.RadMessageFilter.NotifyGetMessageEvent(Message& msg):41 Telerik.WinControls.RadMessageFilter.GetMessageHookProc(Int32 code, IntPtr wParam, IntPtr lParam):36
By default, in the Property Builder for GridView, the defaults are:
Header Text Alignment = Middle Center
Text Alignment = Middle Left.
This means that EVERY time I create a new grid, I have to remember to make them both the same.
Why make them different? It makes the grid look rubbish whenthe defaults are used.

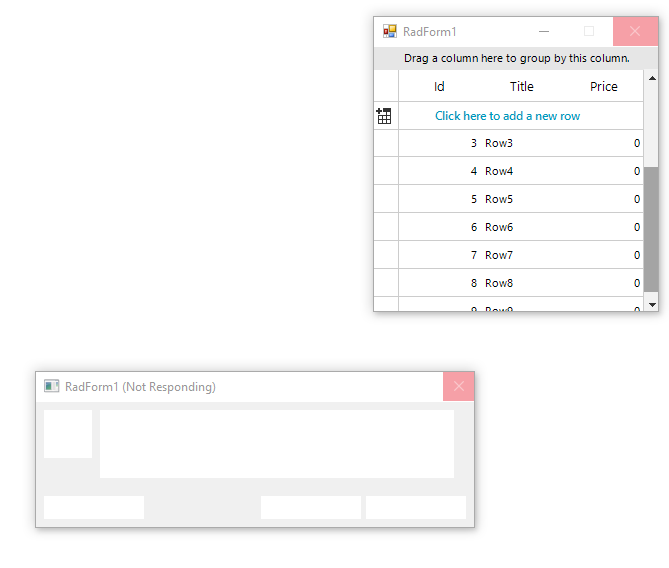

Code snippet for reproducing the error:
DataTable dt = new DataTable();
dt.Columns.Add("Id", typeof(int));
dt.Columns.Add("Title", typeof(string));
dt.Columns.Add("Price", typeof(decimal));
for (int i = 0; i < 10; i++)
{
dt.Rows.Add(i, "Row" + i, 0);
}
this.radGridView1.DataSource = dt;
this.radGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
GridViewSummaryItem summaryItem = new GridViewSummaryItem();
summaryItem.Name = "Price";
summaryItem.Aggregate = GridAggregateFunction.StDev;
GridViewSummaryRowItem summaryRowItem = new GridViewSummaryRowItem();
summaryRowItem.Add(summaryItem);
this.radGridView1.SummaryRowsBottom.Add(summaryRowItem);
With the current implementation, you can drop a column from the ColumnChooser window into the row. The column will be added to a place that reflects its position in the RadGridView Columns collection.
To reproduce:
public RadForm1()
{
InitializeComponent();
PopulateGrid();
}
private void radButton1_Click(object sender, EventArgs e)
{
GridViewSpreadExport spreadExporter = new GridViewSpreadExport(this.radGridView1);
SpreadExpo
rtRenderer exportRenderer = new SpreadExportRenderer();
spreadExporter.ExportHierarchy = true;
spreadExporter.ExportVisualSettings = true;
spreadExporter.ChildViewExportMode = Telerik.WinControls.UI.Export.ChildViewExportMode.ExportAllViews;
string fileName = @"..\..\exportedFile" + DateTime.Now.ToLongTimeString().Replace(":", "_") + ".xlsx";
spreadExporter.RunExport(fileName, exportRenderer);
Process.Start(fileName);
}
public void PopulateGrid()
{
List<GridResults.ChildCollectionFirst> firstCollection = new List<GridResults.ChildCollectionFirst>
{
new GridResults.ChildCollectionFirst
{
Test1 = "First Child"
}
}.ToList();
List<GridResults.ChildCollectionSecond> secondCollection = new List<GridResults.ChildCollectionSecond>
{
new GridResults.ChildCollectionSecond
{
Test2 = "Second Child"
}
}.ToList();
List<GridResults.ChildCollectionThird> thirdCollection = new List<GridResults.ChildCollectionThird>
{
new GridResults.ChildCollectionThird
{
Test3 = "Third Child"
}
}.ToList();
List<GridResults.ChildCollectionFourth> fourthCollection = new List<GridResults.ChildCollectionFourth>
{
new GridResults.ChildCollectionFourth
{
Test4 = "Fourth Child"
}
}.ToList();
var resultsList = new List<GridResults>
{
new GridResults
{
Id = "First Parent",
Value = "Test Value 1",
ChildCollection1 = new List<GridResults.ChildCollectionFirst>(),
ChildCollection2 = new List<GridResults.ChildCollectionSecond>(),
ChildCollection3 = new List<GridResults.ChildCollectionThird>(),
ChildCollection4 = new List<GridResults.ChildCollectionFourth>()
},
new GridResults
{
Id = "Second Parent",
Value = "Test Value 2",
ChildCollection1 = firstCollection,
ChildCollection2 = secondCollection,
ChildCollection3 = thirdCollection,
ChildCollection4 = fourthCollection
},
new GridResults
{
Id = "Third Parent",
Value = "Test Value 3",
ChildCollection1 = new List<GridResults.ChildCollectionFirst>(),
ChildCollection2 = new List<GridResults.ChildCollectionSecond>(),
ChildCollection3 = new List<GridResults.ChildCollectionThird>(),
ChildCollection4 = new List<GridResults.ChildCollectionFourth>()
},
new GridResults
{
Id = "Fourth Parent",
Value = "Test Value 4",
ChildCollection1 = new List<GridResults.ChildCollectionFirst>(),
ChildCollection2 = new List<GridResults.ChildCollectionSecond>(),
ChildCollection3 = new List<GridResults.ChildCollectionThird>(),
ChildCollection4 = new List<GridResults.ChildCollectionFourth>()
},
new GridResults
{
Id = "Fifth Parent",
Value = "Test Value 5",
ChildCollection1 = new List<GridResults.ChildCollectionFirst>(),
ChildCollection2 = new List<GridResults.ChildCollectionSecond>(),
ChildCollection3 = new List<GridResults.ChildCollectionThird>(),
ChildCollection4 = new List<GridResults.ChildCollectionFourth>()
},
new GridResults
{
Id = "Sixth Parent",
Value = "Test Value 6",
ChildCollection1 = new List<GridResults.ChildCollectionFirst>(),
ChildCollection2 = new List<GridResults.ChildCollectionSecond>(),
ChildCollection3 = new List<GridResults.ChildCollectionThird>(),
ChildCollection4 = new List<GridResults.ChildCollectionFourth>()
}
};
// radGridView1.BeginUpdate();
radGridView1.DataSource = resultsList;
// radGridView1.EndUpdate();
foreach (GridViewTemplate t in this.radGridView1.Templates)
{
t.AutoSizeColumnsMode= GridViewAutoSizeColumnsMode.Fill;
}
}
public class GridResults
{
[DisplayName("ID")]
public string Id { get; set; }
[DisplayName("Value")]
public string Value { get; set; }
[DisplayName("Child Collection 1")]
public List<ChildCollectionFirst> ChildCollection1 { get; set; }
[DisplayName("Child Collection 2")]
public List<ChildCollectionSecond> ChildCollection2 { get; set; }
[DisplayName("Child Collection 3")]
public List<ChildCollectionThird> ChildCollection3 { get; set; }
[DisplayName("Child Collection 4")]
public List<ChildCollectionFourth> ChildCollection4 { get; set; }
[DisplayName("Child Collection 1")]
public class ChildCollectionFirst
{
[DisplayName("Test Header")]
public string Test1 { get; set; }
}
[DisplayName("Child Collection 2")]
public class ChildCollectionSecond
{
[DisplayName("Test Header 2")]
public string Test2 { get; set; }
}
[DisplayName("Child Collection 3")]
public class ChildCollectionThird
{
[DisplayName("Test Header 3")]
public string Test3 { get; set; }
}
[DisplayName("Child Collection 4")]
public class ChildCollectionFourth
{
[DisplayName("Test Header 4")]
public string Test4 { get; set; }
}
}

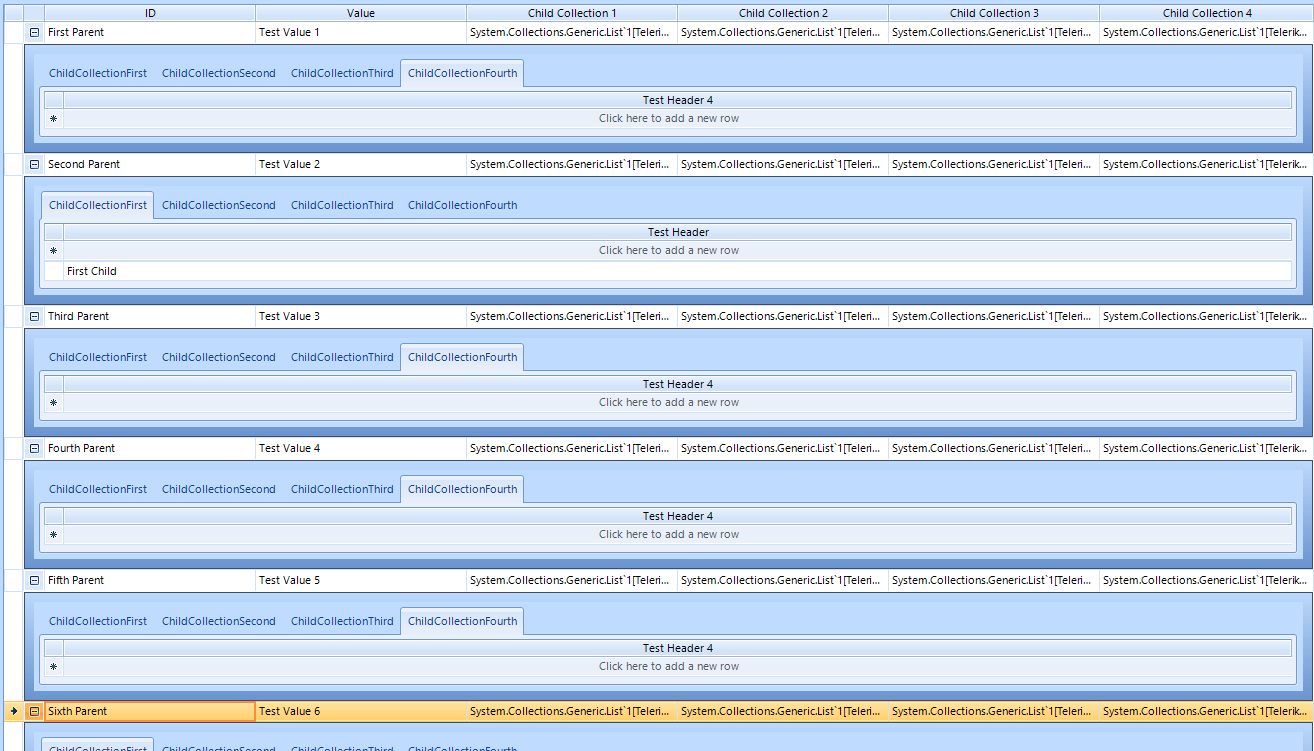

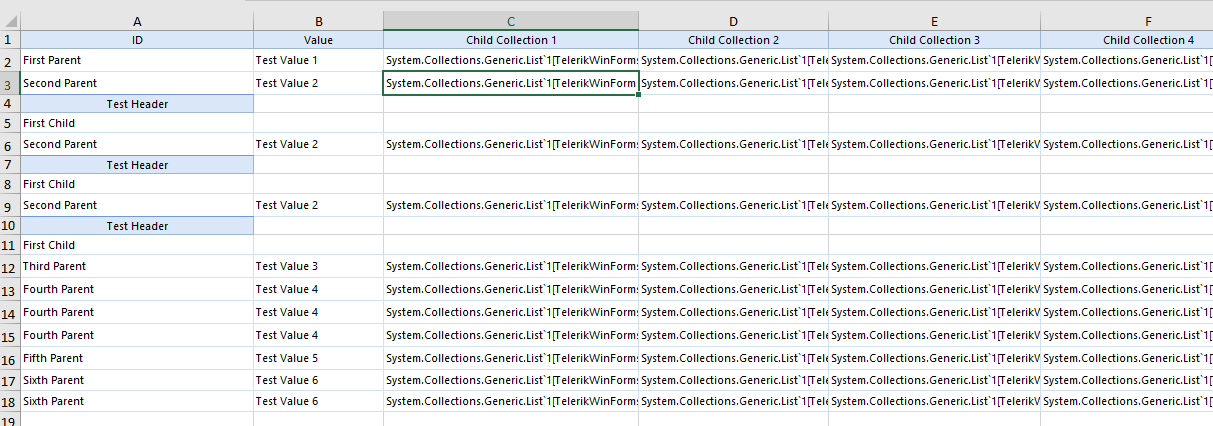

The observed result with duplicated rows is demonstrated here:
Use the code below and click the button to make the grid ReadOnly:
public TestForm()
{
InitializeComponent();
GridViewCheckBoxColumn checkBoxColumn = new GridViewCheckBoxColumn("checkbox");
checkBoxColumn.EnableHeaderCheckBox = true;
this.radGridView1.Columns.Add(checkBoxColumn);
this.radGridView1.Columns.Add("text");
this.Shown += TestForm_Shown;
}
private void TestForm_Shown(object sender, EventArgs e)
{
this.radGridView1.Columns["checkbox"].IsVisible = !this.radGridView1.Columns["checkbox"].IsVisible;
}
private void radButton1_Click(object sender, EventArgs e)
{
this.radGridView1.ReadOnly = !this.radGridView1.ReadOnly;
}
To reproduce:
public RadForm1()
{
InitializeComponent();
this.radGridView1.Columns.Add("Telerik");
this.radGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
for (int i = 0; i < 10; i++)
{
this.radGridView1.Rows.Add(Guid.NewGuid().ToString());
}
}
private void radButton1_Click(object sender, EventArgs e)
{
RadPrintDocument document = new RadPrintDocument();
document.DefaultPageSettings.Landscape = false;
this.radGridView1.PrintPreview(document);
}

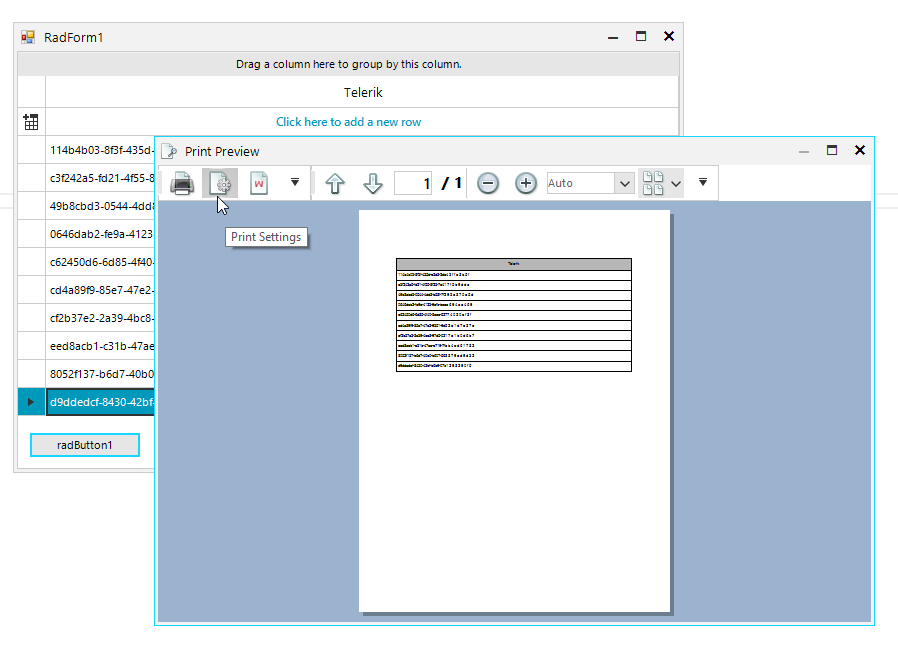

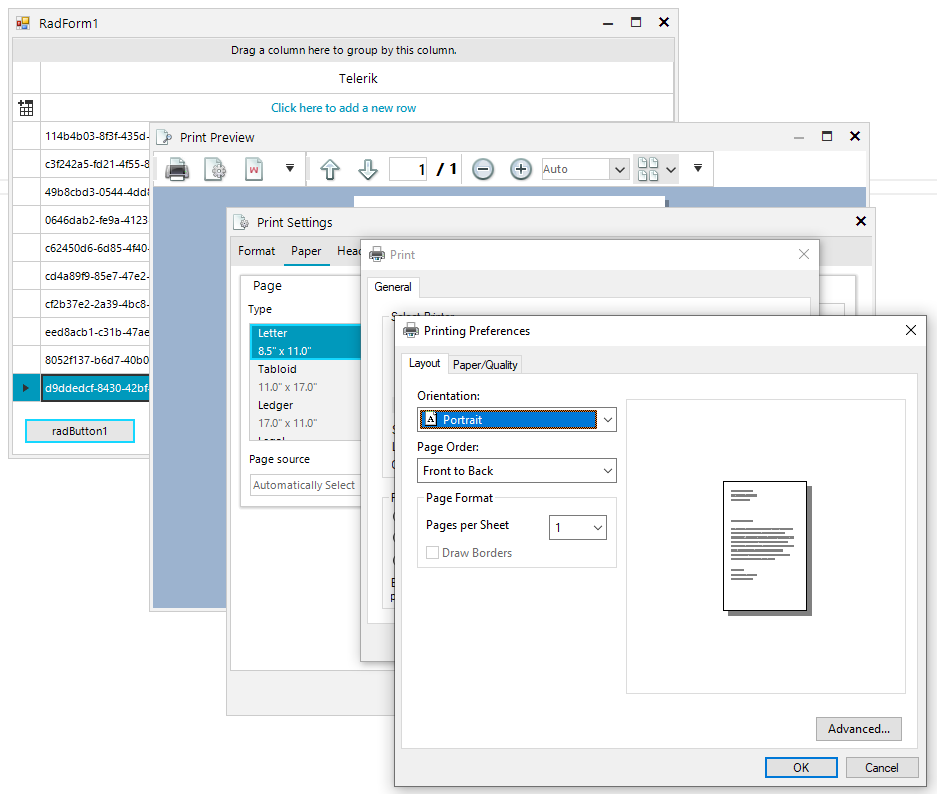

Step 1: Open Print Settings dialog:

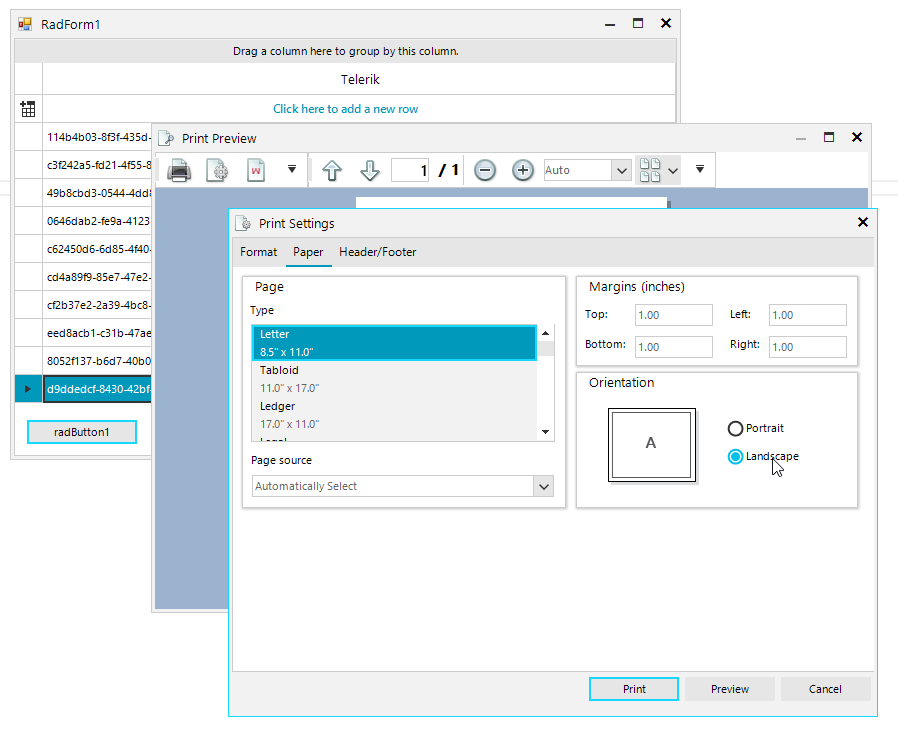

Step 2: Change the Orientation to Landscape:

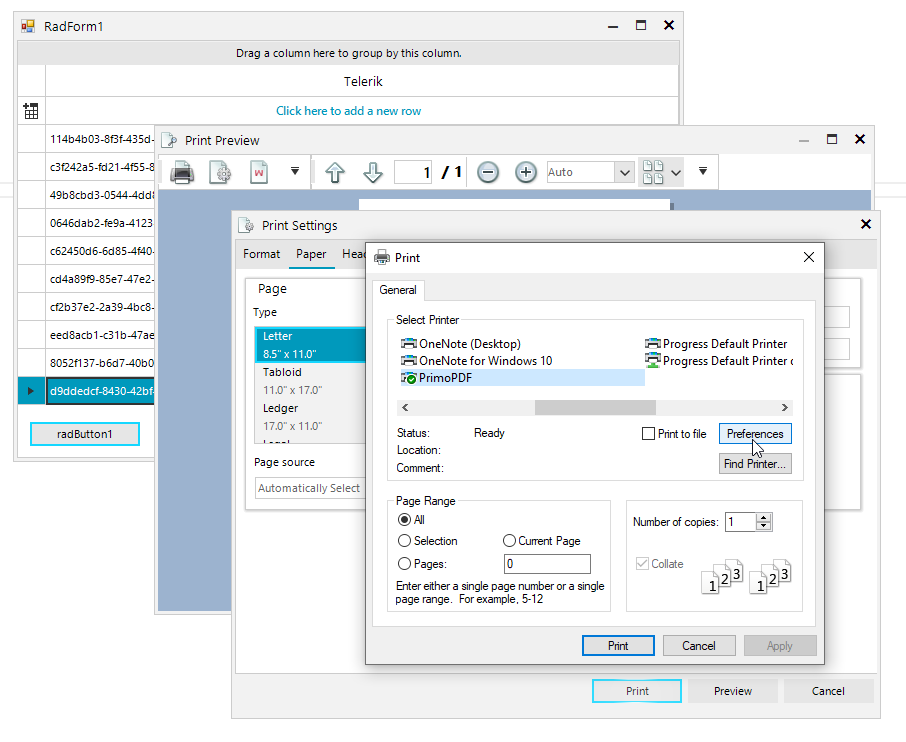

Step 3: Click directly the Print button here. Once the default Print dialog is opened choose Preferences:
Step 4: You will notice that the Orientation is still Portrait instead of Landscape:
Code to replicate the issue:
GridPrintStyle style = new GridPrintStyle();
style.PrintHierarchy = true;
style.HierarchyIndent = 0;
style.ChildViewPrintMode = ChildViewPrintMode.SelectViewToPrint;
this.radGridView1.PrintStyle = style;
this.radGridView1.PrintPreview();
The attached gif file illustrates how the 20px hierarchy indent is returned after hitting the preview button.

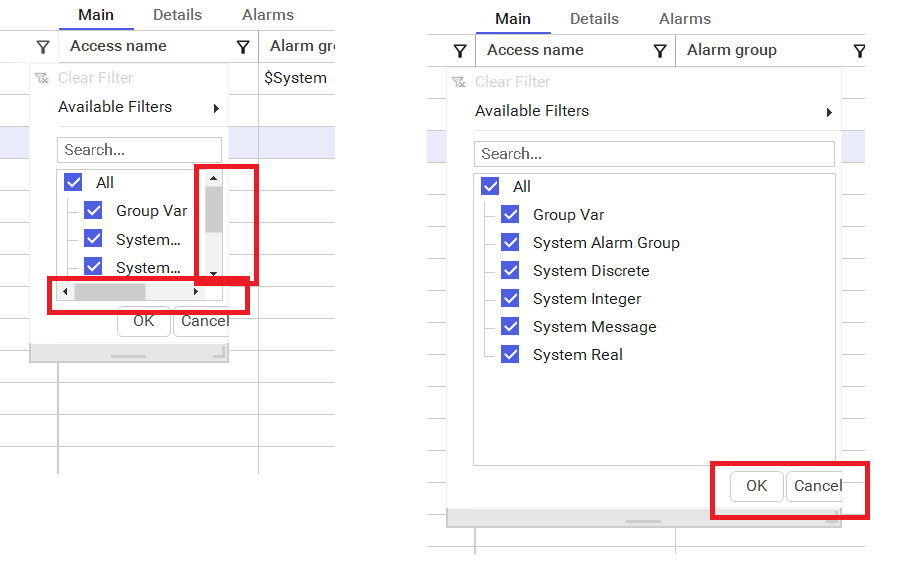

When the font size of the OK and Cancel buttons inside the Excel-like filtering popup is increased, the buttons are cut.

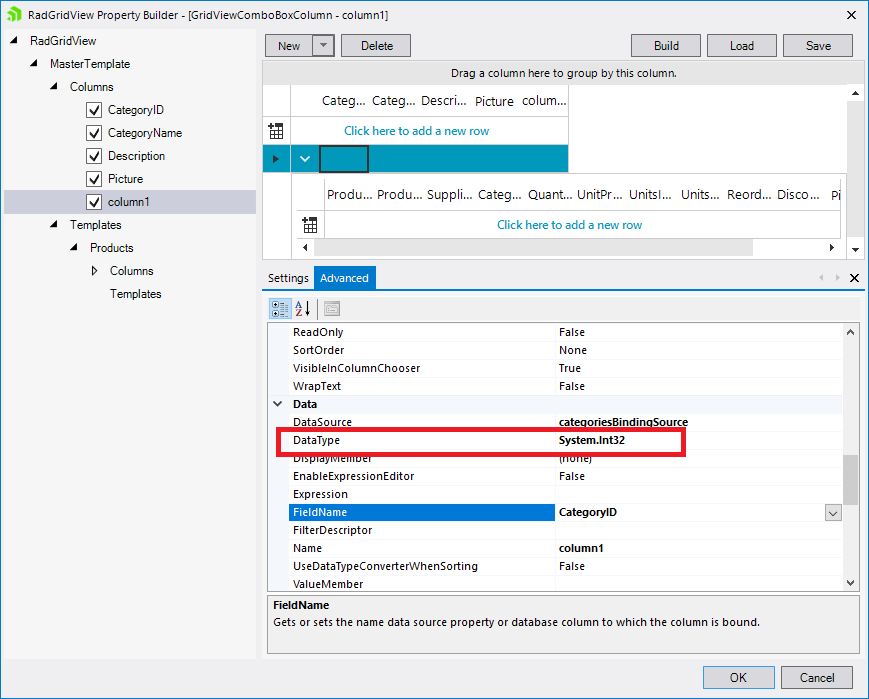

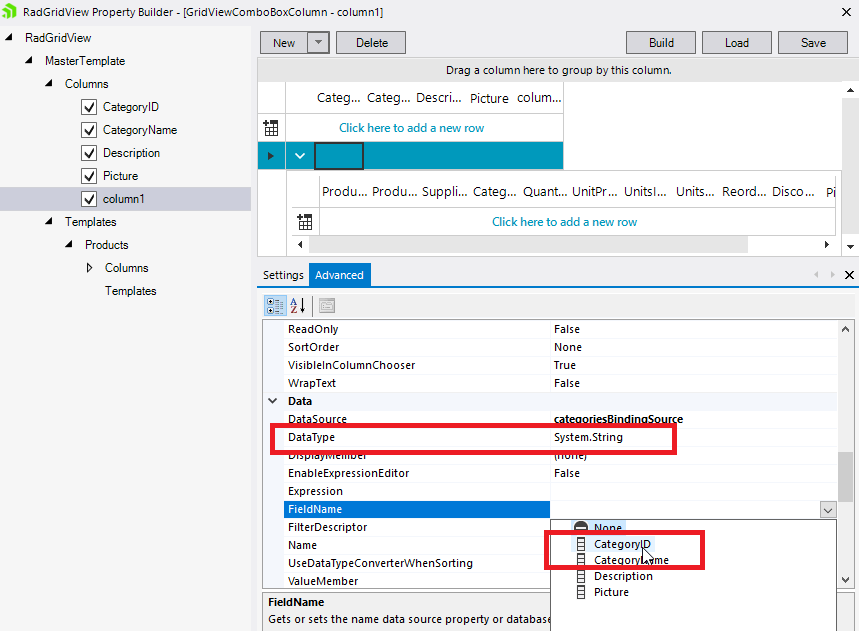

When the GridViewComboBoxColumn is added for the master level, once the FieldName property is set, the DataType is synced with its type:
However, for the child levels, this logic is not executed automatically.
Steps to reproduce:
1. Add a RadGridView with AutoGenerateHierarchy set to true.
2. Set the DataSource to Northwind DataSet and DataMember to Categories:
3. Open the grid's Property Builder and add a combo column for the child level:

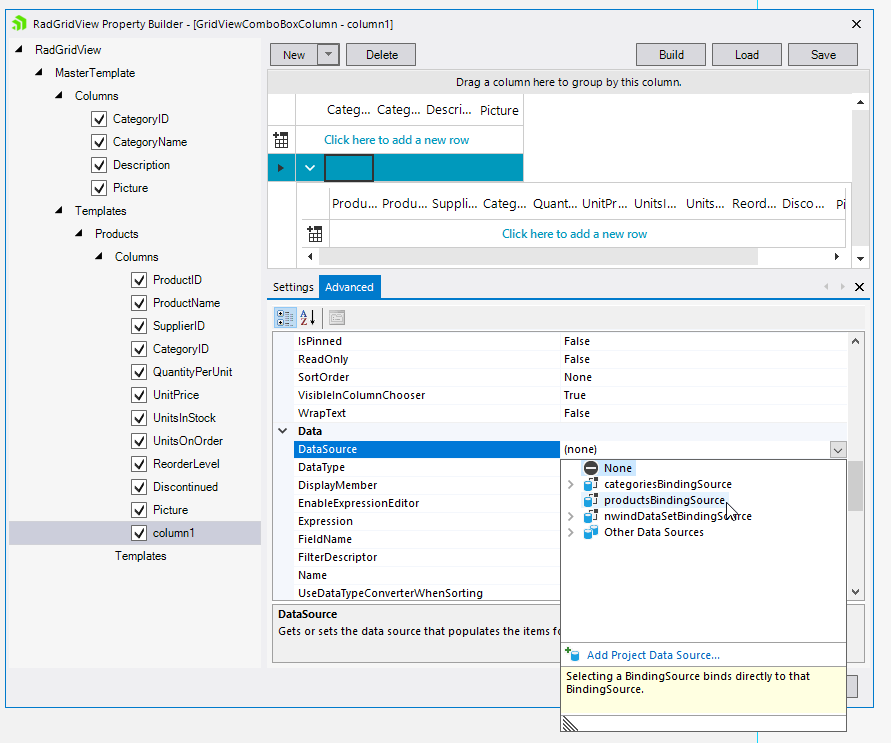

4. Set the column's DataSource property.

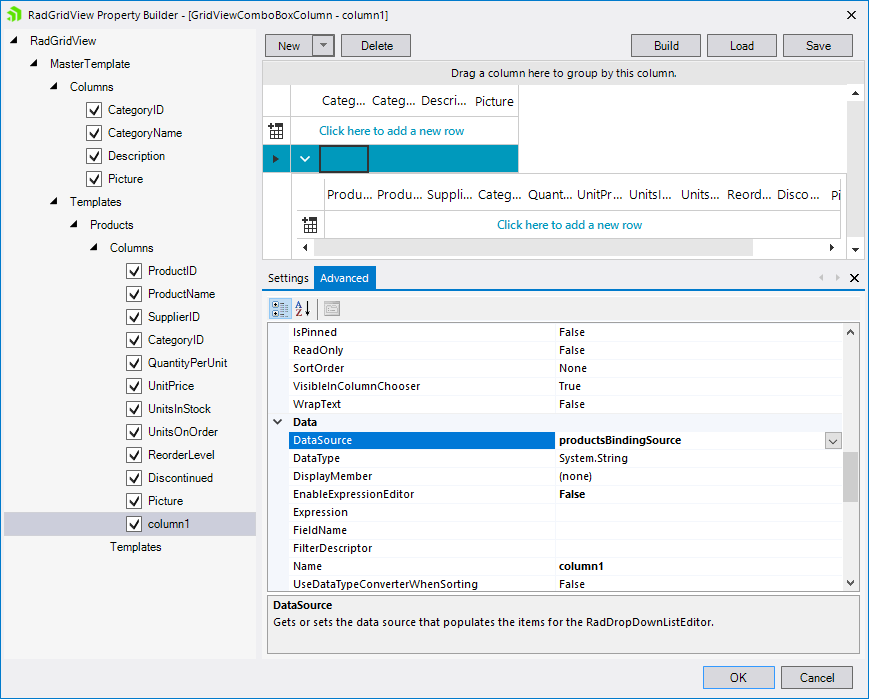

Expected behavior: DataSource collection is properly set:
Actual behavior: blank property grid with settings for the column:
When paging is enabled in RadGridView and a row is pinned, it is visible among all pages. However, it is possible to paste in it only from the page to which it originally belongs.
Use the following setup:
DataTable dt = new DataTable();
dt.Columns.Add("Id", typeof(int));
dt.Columns.Add("Name", typeof(string));
for (int i = 0; i < 100; i++)
{
dt.Rows.Add(i, "Row" + i);
}
this.radGridView1.DataSource = dt;
this.radGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
this.radGridView1.ClipboardPasteMode = GridViewClipboardPasteMode.EnableWithNotifications;
this.radGridView1.EnablePaging = true;
1. Copy the entire content of a random row
2. Navigate to another page and pin a row
3. Change the page and try to paste the clipboard content to the pinned row
Expected behavior: the content is successfully pasted no matter of the current page
Actual behavior: the content is pasted only if the use navigates to the page to which the pinned row originally belongs
