Duplicated
Last Updated: 03 Apr 2024 11:24 by ADMIN

Converting some DocX files to PDF format with page numbering leads to incorrect formatting in the exported PDF:

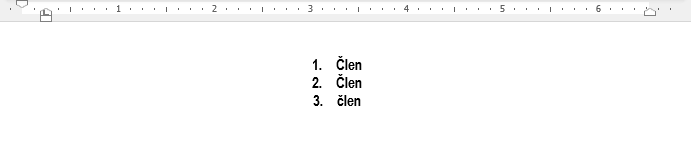

Input DocX:

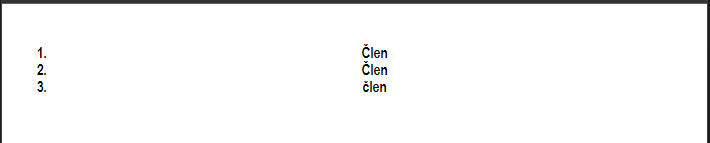

Output PDF:



Unplanned
Last Updated: 02 Apr 2024 13:27 by Graeme

Original DOCX document:

Exported DOCX document:

Workaround:

            Telerik.Windows.Documents.Flow.Model.RadFlowDocument document;

            Telerik.Windows.Documents.Flow.FormatProviders.Docx.DocxFormatProvider docXprovider = new Telerik.Windows.Documents.Flow.FormatProviders.Docx.DocxFormatProvider();

            using (Stream input = File.OpenRead("PT1987 VU22888 Moodle Specification List [2024032716].docx"))
            {
                document = docXprovider.Import(input);
            }

            string normalStyleId = BuiltInStyleNames.NormalStyleId;
            Style normalStyle = document.StyleRepository.AddBuiltInStyle(normalStyleId);
            normalStyle.ParagraphProperties.SpacingAfter.LocalValue = 0;
            normalStyle.ParagraphProperties.LineSpacing.LocalValue = 1;

Unplanned
Last Updated: 12 Mar 2024 13:50 by Stefan

Import the following HTML content:

<ol type="a">
<li>
<div><p>WordsProcessing</p>
</div></li>
<li>
<div>
<p>SpreadProcessing</p>
</div>
</li>
<li>
<div>
<p>PdfProcessing</p>
</div>
</li>
</ol>

The following error occurs:

Unplanned
Last Updated: 04 Mar 2024 11:55 by Jolly
Unplanned
Last Updated: 27 Feb 2024 13:41 by Jagadish

PdfFormatProvider: Table cells are exported with the wrong width when the table is nested in another table and the cells of the nested one have a preferred width set to 100%.

Workaround: Clear the cell PreferredWidth property.

Unplanned
Last Updated: 23 Feb 2024 14:19 by RainMaker
Created by: RainMaker
Comments: 0
Category: WordsProcessing
Type: Feature Request
0
Unplanned
Last Updated: 21 Feb 2024 10:23 by n/a
PdfFormatProvider: Endless loop when exporting a document with specific floating image.
Unplanned
Last Updated: 12 Feb 2024 11:36 by Joshua
DocxFormatProvider: Persist run properties (rPr) for the start of FieldCharacter.
Unplanned
Last Updated: 12 Feb 2024 10:56 by Uwe

PdfFormatProvider: Tab stop distance different from the default is not exported correctly.

Workaround: Use spaces instead.

Completed
Last Updated: 21 Mar 2024 05:53 by ADMIN
Release 2024.1.305 (2024 Q1)

Styles with names only different in spaces are treated as one.

Workaround:

var rtf = File.ReadAllText(fileName);
rtf = this.RenameStyleDifferentInOnlySpaces(rtf);
var document = provider.Import(rtf);

...

private string RenameStyleDifferentInOnlySpaces(string rtf)
{
    HashSet<string> styles = new HashSet<string>();

    string pattern = @"{\\(?:\*\\c)?s([0-9]+)[^}]*\n?[^}]*\\[^' ]* ?'?([^;]*)";

    var matches = Regex.Matches(rtf, pattern);
    foreach (Match match in matches)
    {
        string styleName = match.Groups[2].Value.Replace(" ", string.Empty);
        if (styles.Contains(styleName))
        {
            styleName = this.ReplaceOldStyleName(ref rtf, styles, match).Replace(" ", string.Empty);
        }

        styles.Add(styleName);
    }

    return rtf;
}

private string ReplaceOldStyleName(ref string rtf, HashSet<string> styles, Match match)
{
    string oldStyleName = match.Groups[2].Value;
    StringBuilder styleNameBuilder = new StringBuilder(oldStyleName + "0");
    while (styles.Contains(styleNameBuilder.ToString().Replace(" ", string.Empty)))
    {
        styleNameBuilder.Append("0");
    }

    string oldMatch = match.Groups[0].Value;
    string newMatch = oldMatch.Replace(oldStyleName, styleNameBuilder.ToString());
    rtf = rtf.Replace(oldMatch, newMatch);
    return styleNameBuilder.ToString();
}

Completed
Last Updated: 14 Mar 2024 08:59 by ADMIN
Release 2024.1.305 (2024 Q1)

StackOverflowException when importing a document with style based on itself.

Use the following code to strip the faulty "based on" definition from the RTF:

RtfFormatProvider provider = new RtfFormatProvider();
var rtf = File.ReadAllText(ofd.FileName);
rtf = this.ReplaceSelfBasedOnStyle(rtf);
this.flowDocument = provider.Import(rtf);

...

private string ReplaceSelfBasedOnStyle(string rtf)
{
    string pattern = @"{[\n]*\\s[0-9]+[^;]* \\\w* (Normal);}";

    var matches = Regex.Matches(rtf, pattern);
    foreach (Match match in matches)
    {
        string oldValue = match.Value;
        string newValue = oldValue.Replace(@"\sbasedon0 ", string.Empty);

        rtf = rtf.Replace(oldValue, newValue);
    }

    return rtf;
}

Unplanned
Last Updated: 02 Feb 2024 12:54 by Joshua

When a document containing a field without a separator is inserted using the RadFlowDocumentEditor.InsertDocument(*) method, the following error is thrown:

System.InvalidOperationException: 'Start and end inlines should belong to paragraph in one block container.'

Workaround:

        static void Main(string[] args)
        {
            DocxFormatProvider _DocXProvider = new DocxFormatProvider();
            string outputFile = $@"..\..\MergedResult.docx";
            File.Delete(outputFile);

            RadFlowDocument target = _DocXProvider.Import(File.ReadAllBytes(@"..\..\HeaderFooter.docx"));
            RadFlowDocument source = _DocXProvider.Import(File.ReadAllBytes(@"..\..\SubHeaderFooter.docx"));
            RadFlowDocument contentSource = _DocXProvider.Import(File.ReadAllBytes(@"..\..\ContentOnly.docx"));

            MergeHeaders(target, source);
            MergeFooters(target, source);


            MergeContent(target, source);
            MergeContent(target, contentSource);
            System.IO.File.WriteAllBytes(outputFile, _DocXProvider.Export(target));
            Process.Start(outputFile);
        }

        private static void MergeContent(RadFlowDocument target, RadFlowDocument source)
        {
            DocumentElementImporter importer = new DocumentElementImporter(target, source, ConflictingStylesResolutionMode.UseTargetStyle);

            foreach (Telerik.Windows.Documents.Flow.Model.Section section in source.Sections)
            {
                foreach (BlockBase block in section.Blocks)
                {
                    BlockBase importBlock = importer.Import(block);
                    target.Sections.Last().Blocks.Add(importBlock);
                }
            }
        }

        private static void MergeHeaders(RadFlowDocument target, RadFlowDocument source)
        {
            Header targetHeader = target.Sections.First().Headers.Default;
            Header sourceHeader = source.Sections.First().Headers.Default;

            DocumentElementImporter importer = new DocumentElementImporter(target, source, ConflictingStylesResolutionMode.UseTargetStyle);
            foreach (BlockBase block in sourceHeader.Blocks)
            {
                BlockBase importedBlock = importer.Import(block);
                targetHeader.Blocks.Add(importedBlock);
            }
        }

        private static void MergeFooters(RadFlowDocument target, RadFlowDocument source)
        {
            Footer targetFooter = target.Sections.First().Footers.Default;
            Footer sourceFooter = source.Sections.First().Footers.Default;

            DocumentElementImporter importer = new DocumentElementImporter(target, source, ConflictingStylesResolutionMode.UseTargetStyle);
            int i = 0;
            foreach (BlockBase block in sourceFooter.Blocks)
            {
                BlockBase importedBlock = importer.Import(block);
                targetFooter.Blocks.Insert(i++, importedBlock);
            }
        }



Completed
Last Updated: 14 Mar 2024 08:59 by ADMIN
Release 2024.1.305 (2024 Q1)
HtmlFormatProvider: Paragraph property AutomaticSpacingBefore is set to true instead of false.
Completed
Last Updated: 02 Aug 2024 11:09 by ADMIN
Release 2024.3.802 (2024 Q3)
DocFormatProvider: EndOfStreamException when importing document with specific image.
Unplanned
Last Updated: 29 Jan 2024 16:58 by ADMIN
Styles defined in a glossary part overwrites the styles defined in the main document part.
Unplanned
Last Updated: 23 Jan 2024 13:05 by Amit

When a cell is removed due to having no content its table cell borders are not transferred to neighboring cell.

When a table cell contains a paragraph with no runs it is stripped from the document. However, its table cell borders should be transferred/reapplied to its neighboring cell to maintain consistency.

Unplanned
Last Updated: 10 Jan 2024 14:48 by Jennifer

Run the attached sample project. The available Doc1.docx contains an image place holder with borders around all sides. After inserting an image in the place holder, some of the borders are overlapping with the image:

The expected result is to have the borders around all sides:

Completed
Last Updated: 21 Mar 2024 05:53 by ADMIN
Release 2024.1.305 (2024 Q1)

Handle import of documents with self-referring styles.

As a workaround, you can go through the RTF document structure of a single file and utilize Regex to resolve the self-referring styles like this:

string rtf = File.ReadAllText("inputFile.rtf");
rtf = FixSelfReferringStyles(rtf);

Telerik.Windows.Documents.Flow.FormatProviders.Rtf.RtfFormatProvider provider = new Telerik.Windows.Documents.Flow.FormatProviders.Rtf.RtfFormatProvider();

 var document = provider.Import(rtf);

...

private static string FixSelfReferringStyles(string rtf)
{
    string regexString = @"{\\s([0-9]+)[^}]*\\slink([0-9]+)";

    var matches = Regex.Matches(rtf, regexString);
    foreach (Match match in matches)
    {
        if (match.Groups[1].Value == match.Groups[2].Value)
        {
            var oldValue = match.Groups[0].Value;
            var newValue = oldValue.Replace(@" \slink" + match.Groups[1].Value, string.Empty);
            rtf = rtf.Replace(oldValue, newValue);
        }
    }

    return rtf;
}



Unplanned
Last Updated: 02 Jan 2024 07:47 by Muhammad

Workaround:

Setting the IsDirty property of the FiledInfo object to "true" in order to recalculate layout and update the fields when the document is opened in a viewer:
var fieldInfo = editor.InsertField("TOC");
fieldInfo.UpdateField();
fieldInfo.IsDirty = true;
