Use the below code snippet to generate XLSX document and export it. You will notice that the export operation is extremely slow:
Stopwatch sw = new Stopwatch();
sw.Start();
IWorkbookFormatProvider formatProvider = new Telerik.Windows.Documents.Spreadsheet.FormatProviders.OpenXml.Xlsx.XlsxFormatProvider();
Workbook workbook = new Workbook();
Worksheet worksheet = workbook.Worksheets.Add();
Worksheet worksheet2 = workbook.Worksheets.Add();
worksheet2.Name ="Days";
List<string> weekdays = new List<string>() { "Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday", "Sunday"};
for (int i = 0; i < 7; i++)
{
worksheet2.Cells[0, i].SetValue(weekdays[i]);
}
for (int i = 0; i < 200; i++)
{
for (int j = 0; j < 10; j++)
{
CellIndex cellIndex = new CellIndex(i, j);
CellSelection selection = worksheet.Cells[cellIndex];
selection.SetValue("Wednesday");
var context = new ListDataValidationRuleContext(worksheet, cellIndex)
{
InputMessageTitle = "InputMessageTitle",
InputMessageContent = "InputMessageTitle"
};
context.ErrorStyle = ErrorStyle.Stop;
context.ErrorAlertTitle = "ErrorAlertTitle";
context.ErrorAlertContent = "ErrorAlertContent";
context.InCellDropdown = true;
context.Argument1 = "=Days!A0:A6"; //"Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday";
ListDataValidationRule rule = new(context);
worksheet.Cells[cellIndex].SetDataValidationRule(rule);
}
}
string outputFile = @"..\..\..\output.xlsx";
File.Delete(outputFile);
using (Stream output = new FileStream(outputFile, FileMode.Create))
{
formatProvider.Export(workbook, output);
}
sw.Stop();
Debug.WriteLine("Export " + sw.ElapsedMilliseconds);

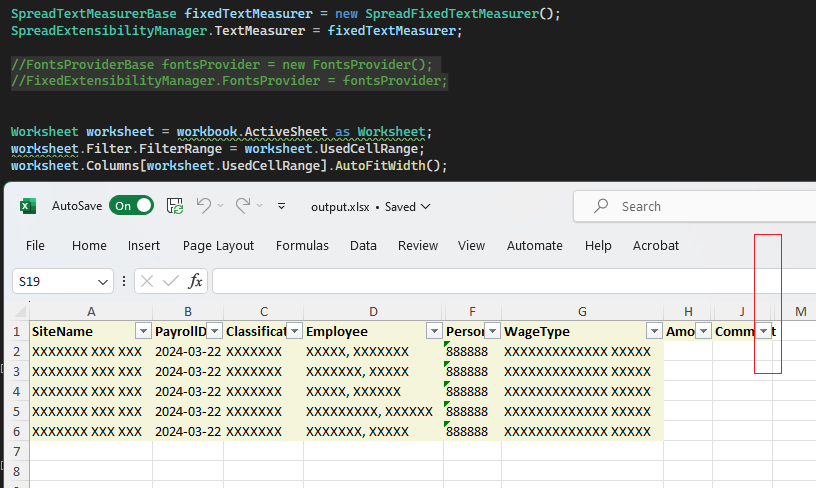

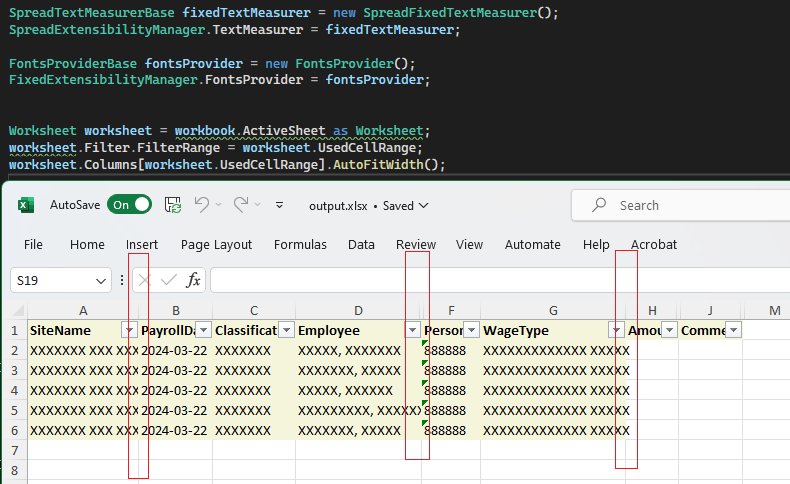

Import an XLSX document and auto-fit the columns. Then, export the document to XLSX format.
Even though a SpreadFixedTextMeasurer is applied and a FontProvider is implemented, the columns are not wide enough to fit the content:
XIRR function returns the internal rate of return for a schedule of cash flows that is not necessarily periodic. To calculate the internal rate of return for a series of periodic cash flows, use the IRR function.
https://support.microsoft.com/en-gb/office/xirr-function-de1242ec-6477-445b-b11b-a303ad9adc9d

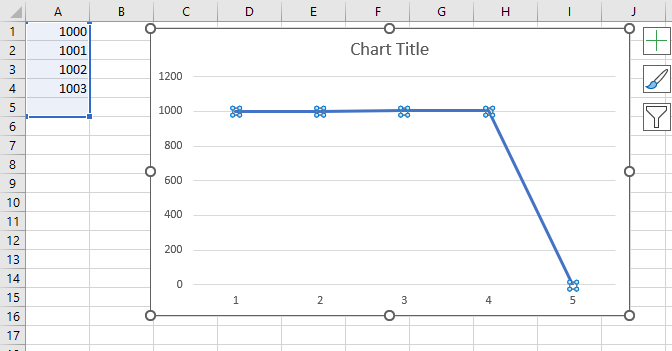

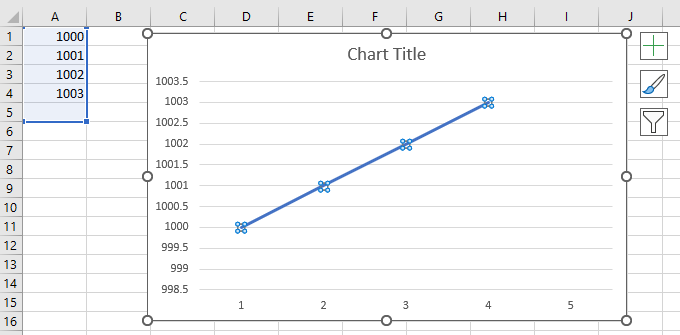

The charts have a display blanks as property which is represented by the dispBlanksAs element. The absence of this element sometimes makes drastic difference in the way a chart might look. E.g. the following chart has a gap in its data and depending on what value dispBlanksAs has, it looks very different.
Incorrect calculation of UsedCellRange when conditional formatting is applied to a large cell range.
Workaround:
var usedCellRange = workbook.ActiveWorksheet.GetUsedCellRange(
CellPropertyDefinitions.AllPropertyDefinitions
.Except(
CellPropertyDefinitions.AllPropertyDefinitions.Where(p => p.Name == "DataValidationRule" || p.Name == "ConditionalFormatting")));
In WorksheetPageSetup, you can only get the PageSize, but not set it. The only way is through setting a PaperType.
This is because in Telerik.Windows.Documents.Spreadsheet.Model.Printing.SheetPageSetupBase, the only way to set the pageSize property is by setting a PaperType, then it uses PaperTypeConverter.ToSize(PaperType) to convert it to the pageSize. I cannot see any other way to set this to a custom size set by the user.
Please allow custom page sizing by adding a setter for the PageSize if possible. Thank you!
WorksheetPageSetup pageSetup = worksheet.WorksheetPageSetup;
Size pageSize = new Size(50, 80)
pageSetup.PageSize = pageSize; // produces cs0200
pageSetup.PageSize.Width = pageSize.Width; // produces cs1612
pageSetup.PageSize.Height = pageSize.Height; // produces cs1612
Use the code to import a sample txt file containing a "+" sign in a cell value:
Workbook workbook;
Telerik.Windows.Documents.Spreadsheet.FormatProviders.IWorkbookFormatProvider formatProvider = new Telerik.Windows.Documents.Spreadsheet.FormatProviders.TextBased.Txt.TxtFormatProvider();
using (Stream input = new FileStream(@"sample.txt", FileMode.Open))
{
workbook = formatProvider.Import(input);
}
Expected behavior: the file is imported successfully
Actual behavior: an error is thrown

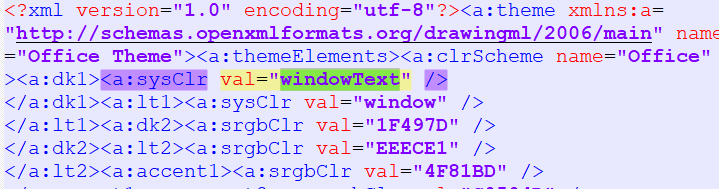

ArgumentException at Telerik.Windows.Documents.FormatProviders.OpenXml.Model.Elements.Theme.SystemColorElement.GetColor(IOpenXmlImportContext context)
The problematic value is val="windowText"
Exception "Format string is not in the correct format" is thrown when importing a file with the following format string: "US$"#,##0.0"m";($#,##0.0)
The exception is thrown in the ValidateDateTimeFormatDescriptor method.
