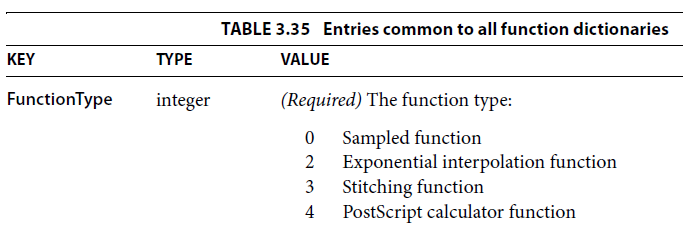

With the current implementation when exporting a Stitching function all the containing functions are exported as Sampled functions even if they originally have been imported as Exponential interpolation functions, which leads to an increase in the size of the document.
More information can be found in the PDF Specification.
12 0 obj ( Brillig ) endobj
2545 0 obj << /Type /Page /Parent 2537 0 R /Contents 8 0 R /Resources 2538 0 R >> 2546 0 obj ....
Splitting a row leads to copying all rows below it. During that operation, the information for the row height is lost, when the previous row has a cell spanning on the split one, leading to a missing row in the exported document.
The issue is a regression introduced in R1 2021.
When a row has two cells and the content of the first one is large, the width of the second cell results in too small value while measuring and its content remains invisible.
Workaround: Set PreferredWidth to the second cell.

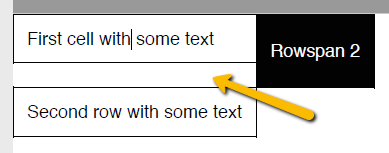

When a Table consisting of one TableRow that contains a TableCell with a Rowspan > 1 set, additional lines are added to the table.
Table table = new Table();
TableRow row = table.Rows.AddTableRow();
row.Cells.AddTableCell();
TableCell secondCell = row.Cells.AddTableCell();
secondCell.RowSpan = 2;
table.Measure();
table.Rows.AddTableRow();
According to the PDF Specification: The first entry in the table (object number 0) is always free and has a generation number of 65,535;
An invalid xref table:
xref 1 3 0000000010 00000 n 0000000124 00000 n 0000011290 00000 n
xref 0 4 0000000000 65535 f 0000000010 00000 n 0000000124 00000 n 0000011290 00000 n
.../AP<</N<</Off null/Yes 439 0 R>>...
Parameter name: form'
PdfFormatProvider: When Arial Narrow Bold fond is set in the document the font-weight is lost when converting to PDF.
Workaround:
var fontData = File.ReadAllBytes(@"C:\Downloads\arial-narrow\arialnb.ttf");
FontsRepository.RegisterFont(new System.Windows.Media.FontFamily("Arial Narrow"), FontStyles.Normal, FontWeights.Bold, fontData);
Currently, the text extraction is following the behavior (text distance) as exported with Adobe.
Provide a setting in TextFormatProvider in order to keep the original distance as in the PDF document.
When exporting PDF documents containing images different than Jpeg and Jpeg2000 the PdfProcessing is using by default the ImageSharp library in order to convert these images to Jpeg.
It seems there is an issue in the older version of the ImageSharp library: Saving a PNG as Jpeg only processes a part of the image on .NET 6.
Workaround: This issue seems to be fixed in the current version (2.0.0) of the ImageSharp library.
