Getting an exception message when trying to view a document as a PDF using the PdfFormatProvider which started happening only after upgrading Telerik to the latest version, 7.1.0 in Telerik UI for Blazor.
Exception Message:
width should be greater or equal than 0. (Parameter 'width')
I have copied the stack trace and source of the exception below:
Source: Telerik.Documents.Fixed
Stack Trace: at Telerik.Windows.Documents.Fixed.Model.Editing.Layout.ContentElementLayoutElementBase`1.DrawHighlights(DrawLayoutElementContext context)
at Telerik.Windows.Documents.Fixed.Model.Editing.Layout.ContentElementLayoutElementBase`1.Draw(DrawLayoutElementContext context)
at Telerik.Windows.Documents.Fixed.Model.Editing.Block.Draw(IEnumerable`1 lineElements, DrawLayoutElementContext context)
at Telerik.Windows.Documents.Fixed.Model.Editing.Block.DrawInternal(FixedContentEditor editor, Rect boundingRect)
at Telerik.Windows.Documents.Fixed.Model.Editing.Block.Telerik.Windows.Documents.Fixed.Model.Editing.Flow.IDrawArrangedElement.DrawArrangedElement(FixedContentEditor editor, Rect boundingRect)
at Telerik.Windows.Documents.Fixed.Model.Editing.Flow.SectionInfo.DrawArrangedElement(IBlockElement blockElement, Double horizontalOffset, Double verticalOffset)
at Telerik.Windows.Documents.Fixed.Model.Editing.Utils.SectionInfoExtensions.DrawArrangedElements(SectionInfo section, IList`1 elements)
at Telerik.Windows.Documents.Fixed.Model.Editing.RadFixedDocumentEditor.Draw()
at Telerik.Windows.Documents.Fixed.Model.Editing.RadFixedDocumentEditor.StartNewPage(SectionProperties sectionProperties)
at Telerik.Windows.Documents.Fixed.Model.Editing.RadFixedDocumentEditor.StartNewPage()
at Telerik.Windows.Documents.Fixed.Model.Editing.RadFixedDocumentEditor.AddBlock(IBlockElement blockElement, CancellationToken cancellationToken)
at Telerik.Windows.Documents.Flow.FormatProviders.Pdf.Export.PdfExporter.ExportSection(Section section, RadFixedDocumentEditor editor)
at Telerik.Windows.Documents.Flow.FormatProviders.Pdf.Export.PdfExporter.ExportDocument(RadFlowDocument document, RadFixedDocumentEditor editor)
at Telerik.Windows.Documents.Flow.FormatProviders.Pdf.Export.PdfExporter.ExportInternal()
at Telerik.Windows.Documents.Flow.FormatProviders.Pdf.Export.PdfExporter.Export()
at Telerik.Windows.Documents.Flow.FormatProviders.Pdf.PdfFormatProvider.ExportToFixedDocument(RadFlowDocument document, CancellationToken cancellationToken)
at Telerik.Windows.Documents.Flow.FormatProviders.Pdf.PdfFormatProvider.ExportOverride(RadFlowDocument document, Stream output, CancellationToken cancellationToken)
at Telerik.Windows.Documents.Flow.FormatProviders.Pdf.PdfFormatProvider.ExportOverride(RadFlowDocument document, Stream output)
at Telerik.Windows.Documents.Common.FormatProviders.FormatProviderBase`1.Export(T document, Stream output)
at Telerik.Windows.Documents.Common.FormatProviders.BinaryFormatProviderBase`1.Export(T document)
Hi, we are facing the below error when trying to convert a Docx file type to PDF type using RadFlowDocument in C# (.NET core 6.0). Please can you help with this issue as soon as possible?
Error message: "Negative height, if converting in Net Standard try registering a smaller font (Parameter 'height: -17.908799999999985')"
C# code snippet for reference:
BinaryFormatProviderBase<RadFlowDocument> provider;
RadFlowDocument document;
using (var output = new MemoryStream())
{
provider.Export(document, output)
}
Multiple CSS classes on an element are not correctly resolved when converted to inline styles.
Before:
.TelerikNormal {font-family: Calibri;font-size: 14.6666666666667px;margin-top: 0px;margin-bottom: 0px;line-height: 100%;color: #000000;}.TelerikHeading3 {font-family: Calibri Light;font-size: 22.6666666666667px;}<p class="TelerikNormal TelerikHeading3"><span>Test</span></p>Due to order priority, the TelerikHeading3 values override the TelerikNormal values. The font-size becomes 22.6666666666667px.
Convert:
provider.ExportSettings.StylesExportMode = StylesExportMode.Inline;
<p style="font-family: Calibri;font-size: 14.6666666666667px;margin-top: 0px;margin-bottom: 0px;line-height: 100%;color: #000000;"><span>Test</span></p>
PdfFormatProvider: Add support for the "Automatically resize to fit contents" table property.
Import a document that contains a picture content control and the following error occurs:
Telerik.Windows.Documents.Flow.Model.Annotations.StructuredDocumentTags.Builders.SdtBuilderFailureException: 'Picture control cannot be used in selection that contains any non-image content, or more than a single image.'
NullReferenceException when inserting a document containing a table with a document variable having a line break (\n) in its value.

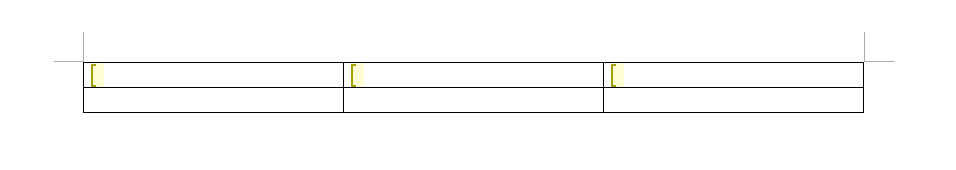

Import/export strips w:colFirst and w:colLast from table's <w:permStart> elements.
Expected:
Actual:
<w:sdt>
<w:sdtPr>
<w:text w:multiLine="1"/>
</w:sdtPr>
<w:sdtContent>
<w:r>
<w:t>Line 1</w:t>
</w:r>
<w:r>
<w:br/>
</w:r>
<w:r>
<w:t>Line 2</w:t>
</w:r>
</w:sdtContent>
</w:sdt>
