Declined
Last Updated: 10 Feb 2020 15:47 by ADMIN
Dev
Created on: 07 Feb 2020 20:34
Category: ConversationalUI
Type: Feature Request
1
Ability to fully customize the UI of the input area

RadChat has an InputAreaBackgroundColor property, but it would be nice to be able to have full control over the UI of the entire input area. For example, I have the following UI from my designers that I cannot currently implement using RadChat:

Adding an InputAreaControlTemplate would be much appreciated.

3 comments
ADMIN
Didi
Posted on: 10 Feb 2020 15:47

Hi,

RadChat's visual appearance is defined through a Control Template. In order to customize the way the Conversational UI looks, you would need to take the default ControlTemplate and modify it.

More information about this can be found in the RadChat Control Template article from our documentation.

Regards,
Didi
Progress Telerik

ADMIN
Lance | Senior Manager Technical Support
Posted on: 07 Feb 2020 22:02

Hello,

Sorry for the extra reply, I forgot to mention there's one StaticResource in the template. This means you will need to define it within the scope of where you use the template.

Add this to those Resources:

<telerikConversationalUI:ChatListViewMarginConverter x:Key="ChatListViewMarginConverter"/>

Regards,


Lance | Team Lead - US DevTools Support
Progress Telerik

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
ADMIN
Lance | Senior Manager Technical Support
Posted on: 07 Feb 2020 21:42

Hi Dev,

You can do this by overriding the ControlTemplate of the RadChat. I understand extracting the default Style for the control is not as easy in Xamairn.Forms as it is for other XAML platforms (i.e. WPF or UWP).

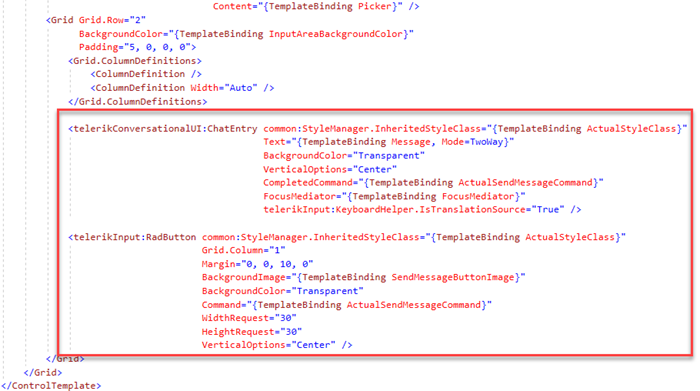

Therefore, I've put together a demo for you that has the default ControlTemplate for RadChat. Inside the ControlTemplate, you will find a Grid containing a ChatEntry control. This is the input area at the bottom.

To use it, you set the ControlTemplate property of RadChat:

<telerikConversationalUI:RadChat ControlTemplate="{StaticResource ORIGINAL_RadChatControlTemplate}"/>

Important Note

When you change the ControlTemplate, you'll be changing the base functionality of the control. This means any changes you make to the control are no longer supported by Progress Support as it is not the same control we shipped with UI for Xamarin. For more information about this, see the scope of support article.

If you do want to get custom development or design help to extend the control, we do have partners that you can connect with that will add as many features or design to the control. Contact them here: Professional Services - Feature Customization.

Wrapping Up

I hope this helps you move forward while the team reviews the feature request for future support of adding other templates.

Regards,
Lance | Team Lead - US DevTools Support
Progress Telerik

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
Attached Files:
